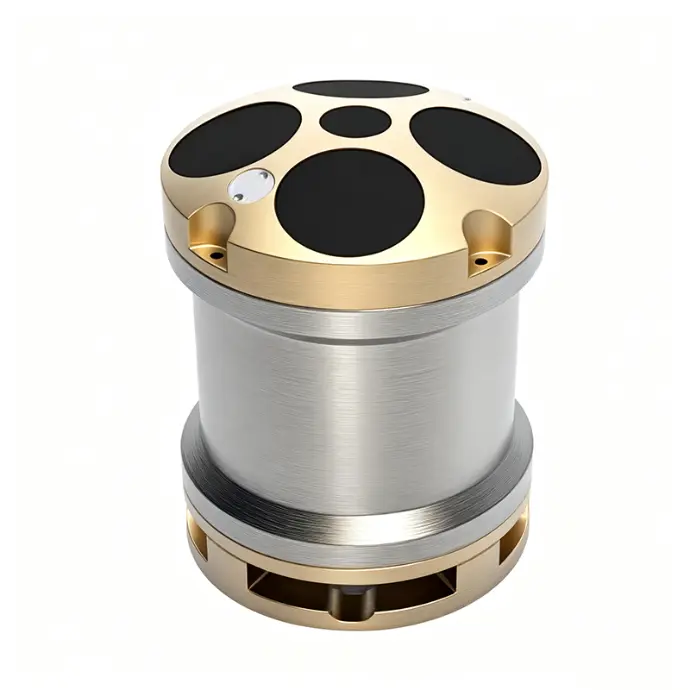

ADCP-1200K

https://china-sonar.com/web/image/product.template/39/image_1920?unique=a4e0737

Acoustic Doppler Current Profiler 1200kHz

Key Features

  • Long Range
    In wide-beam working mode, the ADCP-1200K can measure flow velocity up to 40 meters.
  • High Accuracy
    ADCP enables long-term observation with stable and reliable data.
    Velocity measurement accuracy fully meets flow measurement requirements.
    ADCP outputs direct flow velocity results without the need for upper-level software processing.
  • Low Power Consumption
    Utilizes low-power technology with an average power consumption of only 3.5 W.
  • High Reliability
    Mature hardware design ensures stable and reliable instrument performance.
  • Wi-Fi Data Transmission
    Supports RS232, RS422, and Wi-Fi data transmission.
    Enables wireless device connection and data transfer with an effective range of up to 20 m.
  • Multiple Working Modes
    Supports navigation mode, fixed-point measurement mode, self-adaptive mode, and bottom tracking mode . Suitable for multiple applications such as fixed-point flow monitoring, navigation, and measurement.

0.00 0.0 USD 0.00 VAT Included

0.00 VAT Included

    This combination does not exist.

    Terms and Conditions
    Shipping: 15-30 Business Days

    Specifications

    Specification Parameter
    Working Frequency1200 kHz
    Beam Configuration5 Beams Janus, 20°(600kHz central beam)
    Working ModesBroadband, Narrowband, Pulse Coherent
    Transducer TypePiston
    Water Profiling Range0.1- 40m
    Bottom Tracking Range0.15- 50m
    Velocity Accuracy±0.25% ±0.2 cm/s
    Velocity Resolution1 mm/s
    Velocity Range±5.0 m/s (Default); ±20.0 m/s (Maximum)
    Number of Depth Cells1 – 260
    Ping RateMax 20 Hz
    Depth Cell Size (High Precision Mode)0.02-2m
    Depth Cell Size (Long Range Mode)2 m
    Internal Memory16 GB Micro SD Card
    CommunicationsRS-232 (typical), RS-422 (optional), Wi-Fi (optional); Baud rate: 4800 – 115200
    Sensor (Water Temperature)Range: −10 °C to +60 °C / Accuracy: ±0.1 °C / Resolution: 0.001 °C
    Sensor (Pressure)Range: 0 – 200 m / Accuracy: 0.5% FS / Resolution: 0.01 m
    Sensor (Compass)Range: 0° – 360° / Accuracy: ±0.5° / Resolution: 0.001°
    Sensor (Motion)Range: ±30° / Accuracy: ±0.2° / Resolution: 0.001°
    Operating Temperature−5 °C to +45 °C
    Storage Temperature−20 °C to +60 °C
    Power Input9 – 18 V DC (standard 12 V)
    Power Consumption3.5 W (average)

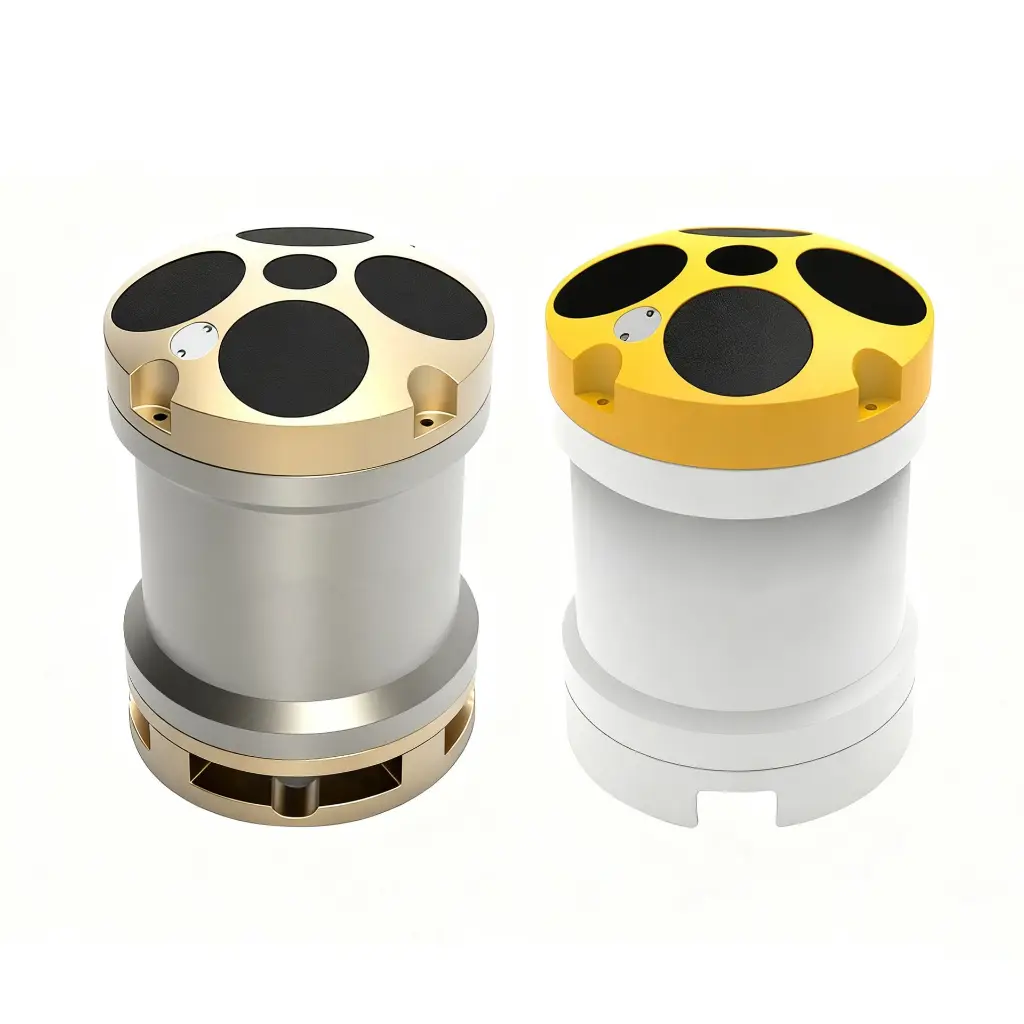

    MaterialEngineering plastic, aluminum alloy and titanium alloy three material selectable

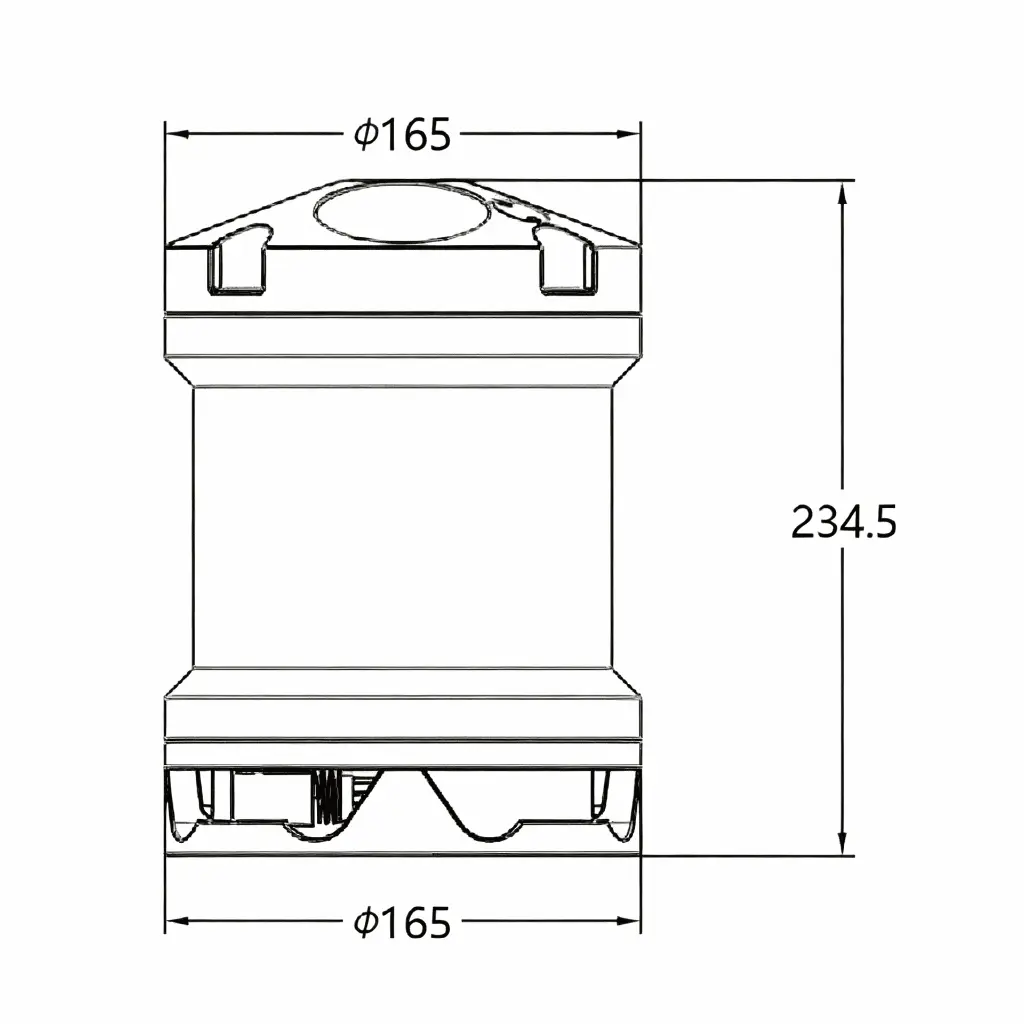

    Dimension (excluding connector)Φ165 mm × 235 mm

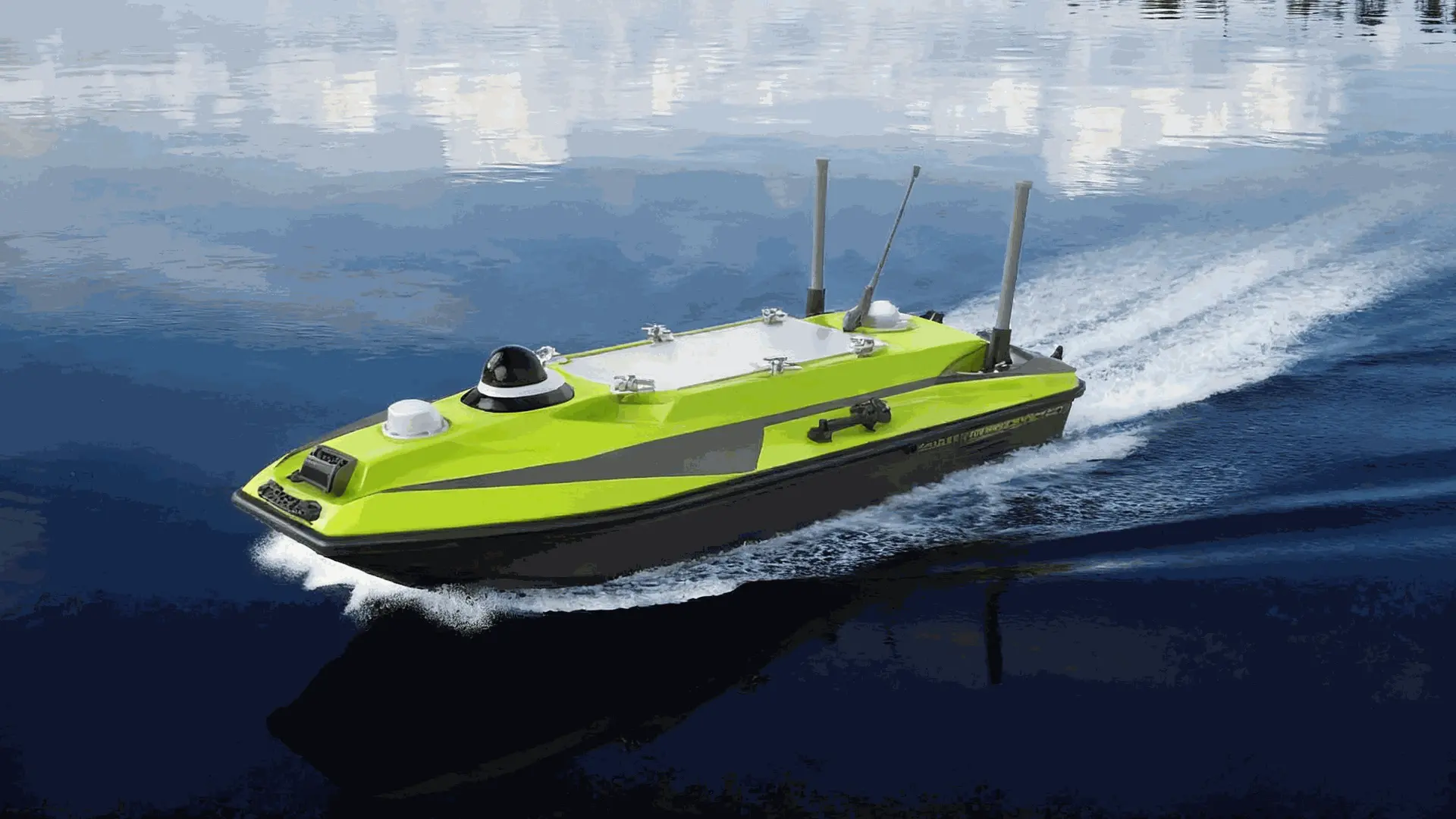

    Float ConfigurationThree hulls (Trimaran), USV; Material: Polyethylene (Trimaran), Carbon Fiber (USV)
    Available OptionsExternal battery case, Bottom tracking, AC/DC power converter

    Applications


    • Water Conservancy and Hydrology
    • Marine Engineering
    • Waterway Systems
    • Environmental Protection Systems
    • Marine Systems
    • Scientific Research Institutes
    • Underwater Navigation

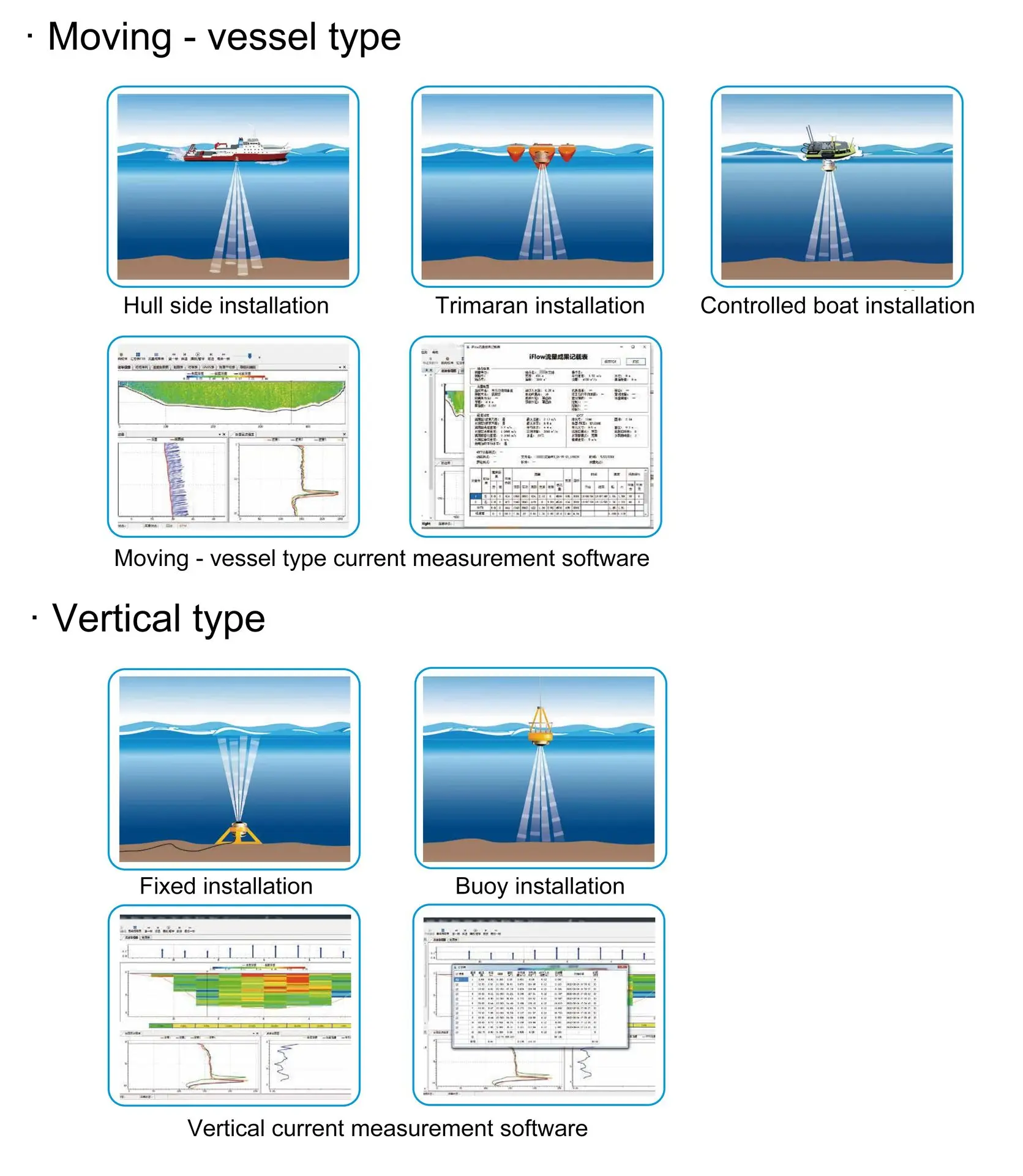

    Installation Methods
