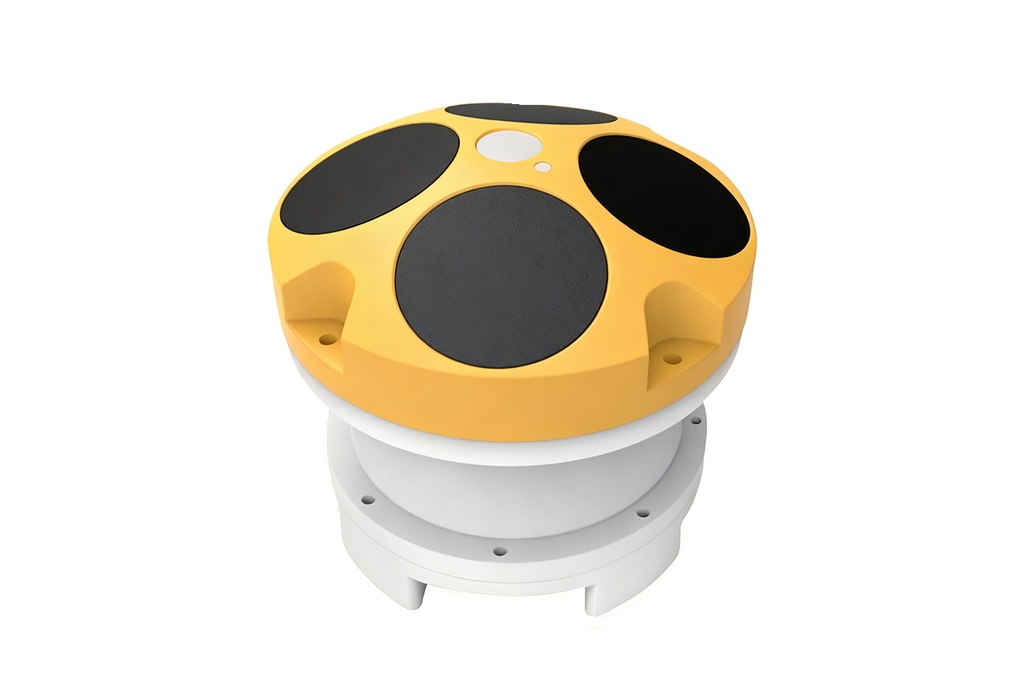

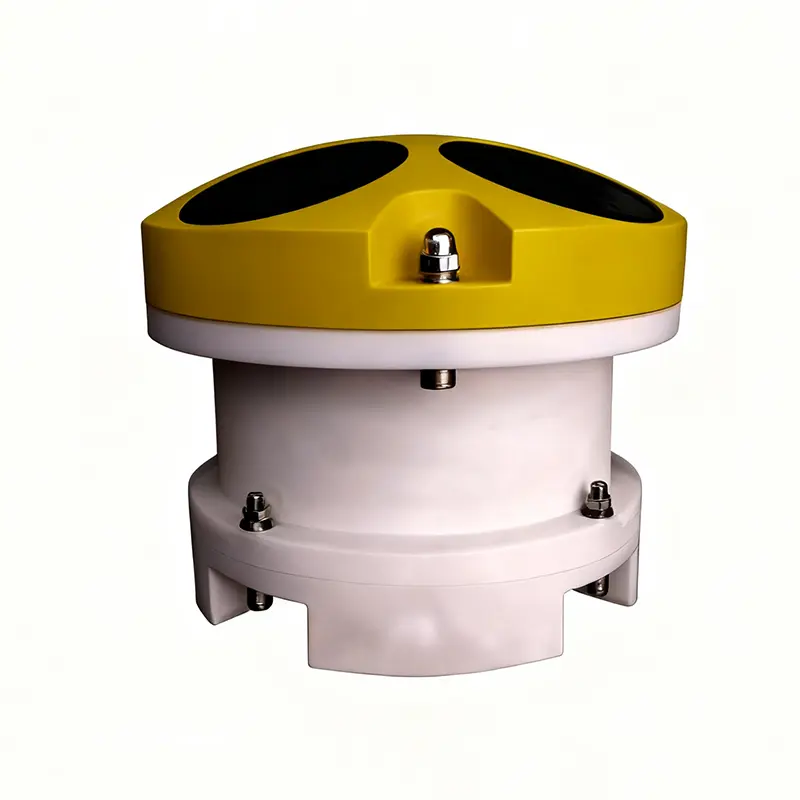

ADCP-600K

https://china-sonar.com/web/image/product.template/18/image_1920?unique=feff7a2

Acoustic Doppler Current Profiler 300kHz

Key Feature​s

  • Wide Range
    In broadband working mode, the ADCP-600K can measure velocity profiles up to 90 m.
  • High Accuracy
    With long-term ADCP observation, the data is stable and reliable, and the measurement accuracy fully meets flow measurement requirements.
  • Low Power Consumption
    Adopts low-power technology with an average power consumption of ≤ 3.2 W.
  • High Reliability
    Designed with mature hardware, ensuring stable and reliable instrument performance.
  • Wi-Fi Transmission
    Supports RS232, RS422, and Wi-Fi transmission interfaces. Enables wireless device connection and data transfer with an effective distance of up to 20 m.
  • Multiple Working Modes
    Supports navigation mode, fixed-point current measurement, self-contained mode, and bottom tracking (DVL) mode .
  • Customizable Software
    Fully independently developed current measurement software, customizable according to user requirements.

$ 0.00 0.0 USD $ 0.00 VAT Included

$ 0.00 VAT Included

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: 15-30 Business Days

    Specifications

    Specification Parameter
    Working Frequency600 kHz
    Beam Configuration4 Beams Janus, 20°
    Working ModesBroadband, Narrowband, Pulse Coherent
    Transducer TypePiston
    Water Profiling Range0.3 – 90 m
    Bottom Tracking Range0.4 – 120 m
    Velocity Accuracy±0.25% ±0.2 cm/s
    Velocity Resolution1 mm/s
    Velocity Range±5.0 m/s (Default); ±20.0 m/s (Maximum)
    Number of Depth Cells1 – 260
    Ping RateMax 20 Hz
    Depth Cell Size (High Precision Mode)0.05 – 4 m
    Depth Cell Size (Long Range Mode)4 m
    Internal Memory16 GB Micro SD Card
    CommunicationsRS-232 (typical), RS-422 (optional), Wi-Fi (optional); Baud rate: 4800 – 115200
    Sensor (Water Temperature)Range: −10 °C to +60 °C / Accuracy: ±0.1 °C / Resolution: 0.001 °C
    Sensor (Pressure)Range: 0 – 200 m / Accuracy: 0.5% FS / Resolution: 0.01 m
    Sensor (Compass)Range: 0° – 360° / Accuracy: ±0.5° / Resolution: 0.001°
    Sensor (Motion)Range: ±30° / Accuracy: ±0.2° / Resolution: 0.001°
    Operating Temperature−5 °C to +45 °C
    Storage Temperature−20 °C to +60 °C
    Power Input9 – 18 V DC (standard 12 V)
    Power Consumption3.5 W (average)

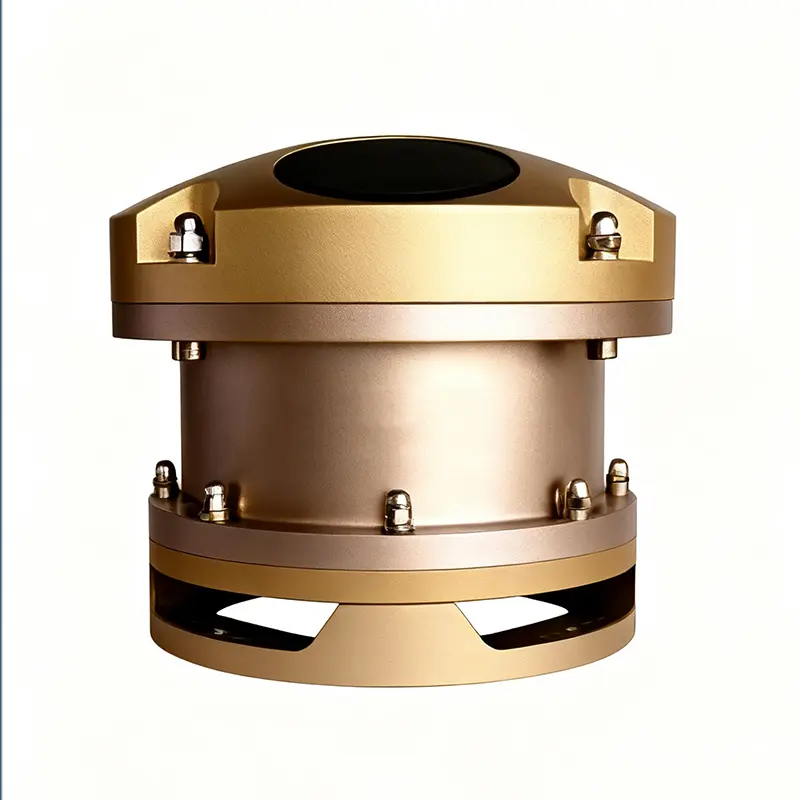

    MaterialEngineering plastic, aluminum alloy, or titanium alloy (selectable)

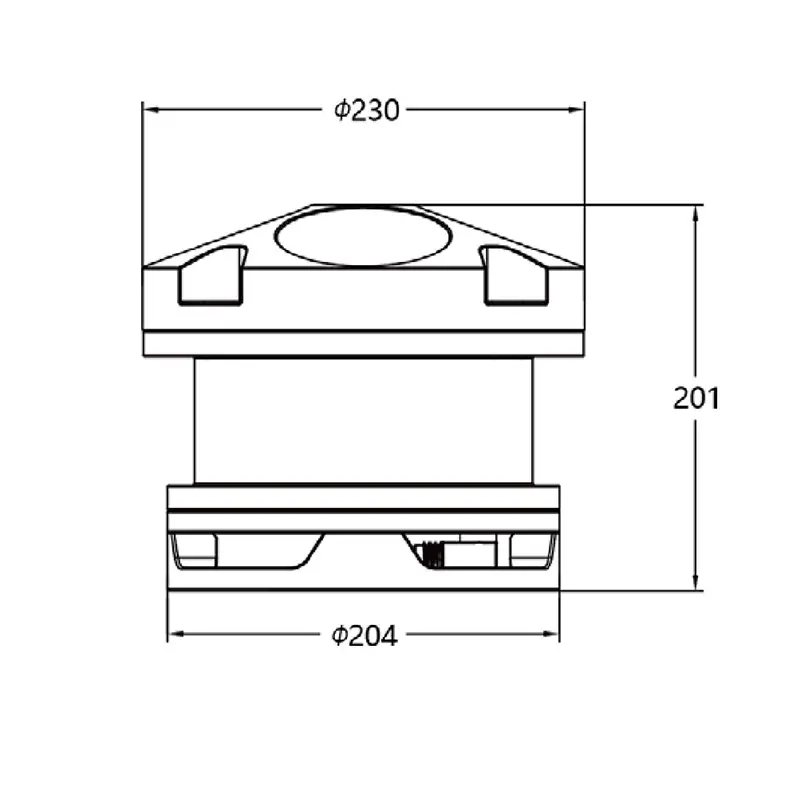

    Dimension (excluding connector)Φ230 mm × 195 mm
    Float ConfigurationThree hulls (Trimaran), USV; Material: Polyethylene (Trimaran), Carbon Fiber (USV)
    Available OptionsExternal battery case, Bottom tracking, AC/DC power converter

    Applications


    • Water Conservancy and Hydrology
    • Marine Engineering
    • Waterway Systems
    • Environmental Protection Systems
    • Marine Systems
    • Scientific Research Institutes
    • Underwater Navigation

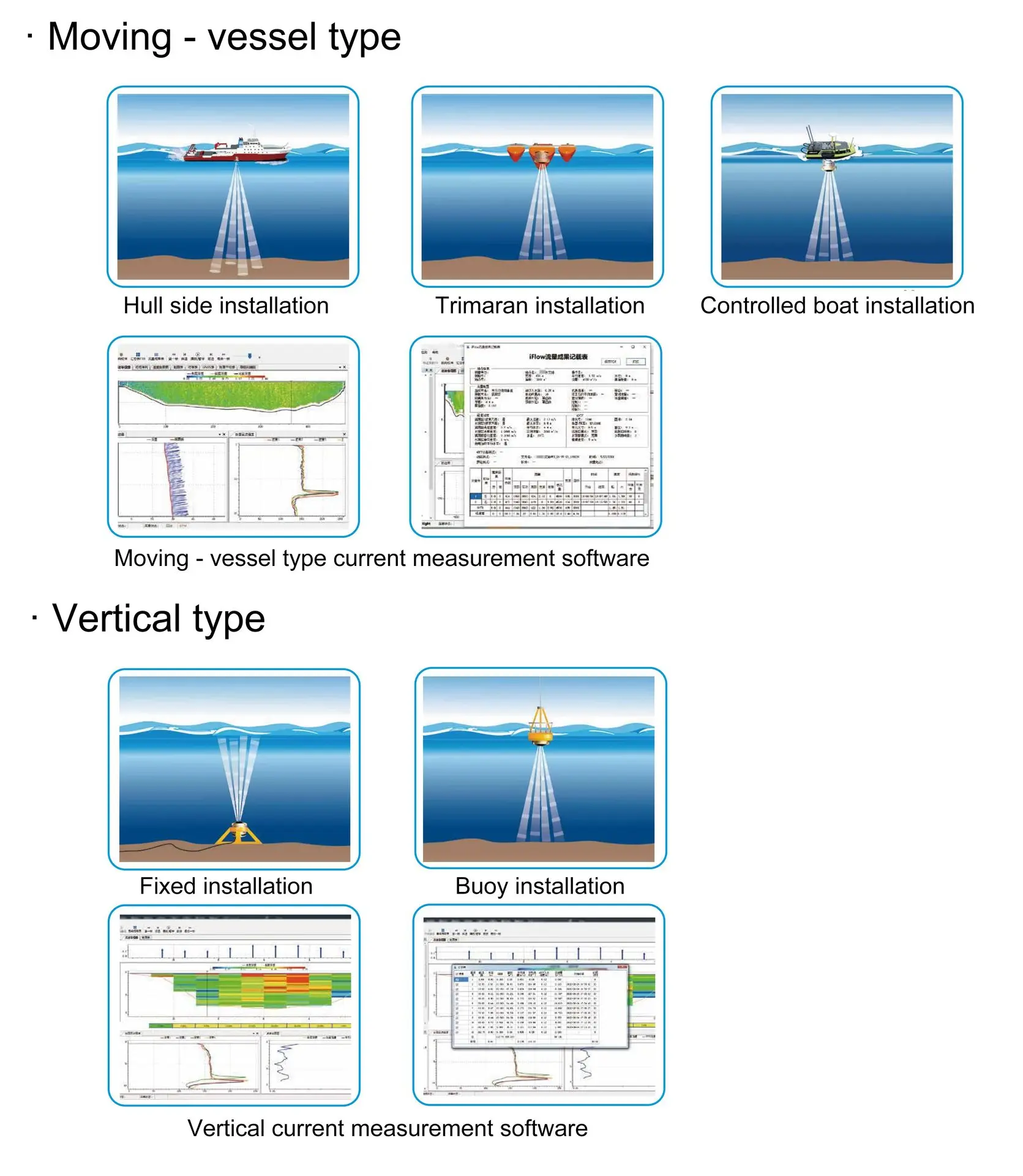

    Installation Methods
