UAC-500F

Multi-beam Forward-Looking Sonar 500kHz

The UAC-500F forward-looking sonar adopts multi-beam imaging technology to achieve real-time high-resolution imaging of suspended objects or obstacles in the water ahead of the sonar. Boasting a compact size and highly integrated design, the product features fully independent and controllable software and hardware. It is suitable for meeting the navigation support or target detection needs of small and medium-sized underwater vehicles.

UAC-500F Multi-beam Forward-Looking Sonar -Imaging Sonar

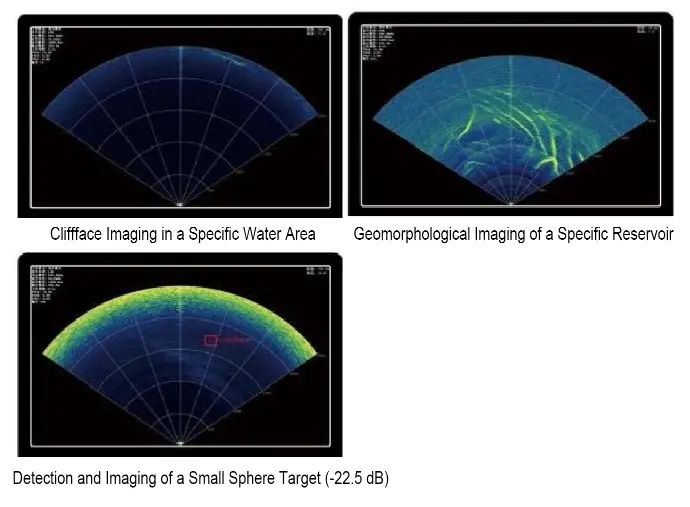

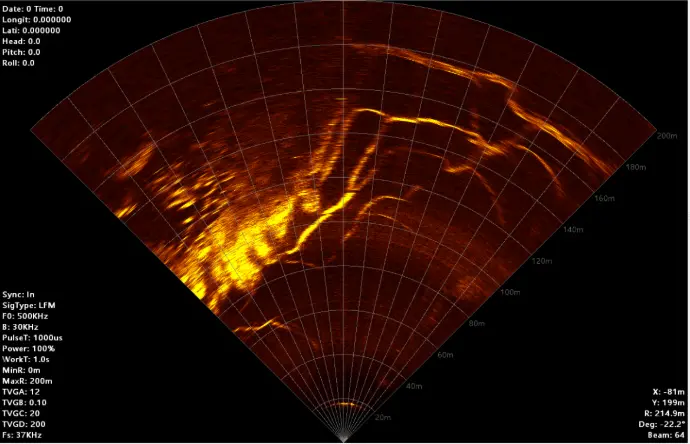

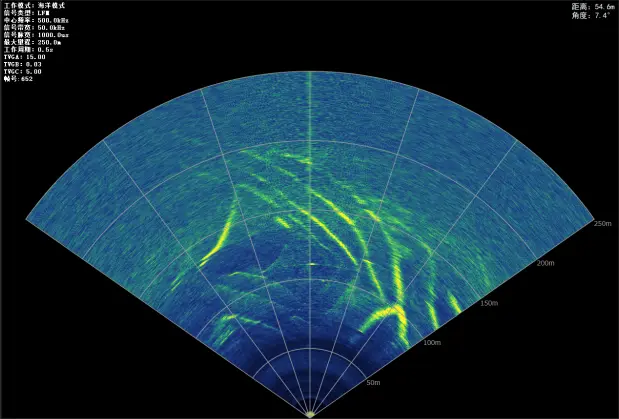

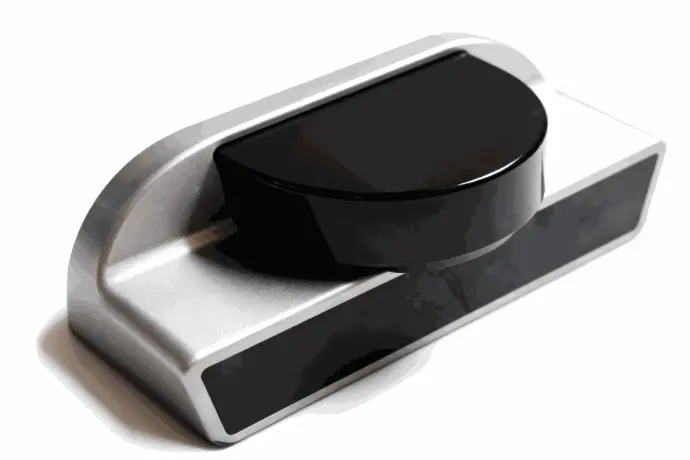

UAC-500F（Underwater Acoustic Camera ）

Key Features:

  • Precision Clarity: Multi-beam high-resolution technology with 2.5cm range resolution.
  • Wide Vision: 90° horizontal field of view for comprehensive situational awareness.
  • Long Reach: Reliable detection range up to 150m for early obstacle avoidance.
  • Durable Build: 5A06 aluminum alloy housing, rated for 100m depth (customizable).
  • Independent IP: Fully self-developed software and hardware for total security and control.

▶ Request a quote

Overview

Specifications

Specification Parameter
Operating Frequency500 kHz (center), 30 kHz (bandwidth)
Beam Field of View90° horizontal, 7° vertical
Maximum Detection Range150 m (for -15dB targets under favorable hydrological conditions)
Range Resolution2.5 cm
Angular Resolution0.8°
Communication Interface100M/1000M adaptive Ethernet
External Sync InterfaceRS485
Power Supply / Consumption18-30 VDC, 24 W (typical)
Maximum Operating Depth100 m (customizable on demand)
Dimensions140 mm × 208 mm × 92.5 mm
Weight2.4 kg (5A06 aluminum alloy)
Environmental AdaptabilityOperating: -10℃ to 50℃; Storage: -40℃ to 70℃
Software DevelopmentProvides display and control software or SDK, supporting secondary development

Applications


  • Autonomous Obstacle Avoidance: Real-time obstacle detection and path planning for AUVs, ROVs, and USVs.
  • Target Search & Recovery: High-resolution acoustic imaging for locating submerged objects in zero-visibility waters.
  • Infrastructure Inspection: Close-range safety assessment of bridge piers, dam faces, and subsea pipelines.
  • Confined Space Exploration: Compact form factor optimized for surveying culverts, tunnels, and shipwreck interiors.
  • Collaborative Mission Support: Precision target locking for diver navigation and multi-sensor integrated operations.
