UAC-750S    Single-beam Side-scan Sonar

150m Wide Swath  (750kHz) /1.5cm range  Resolution

The UAC-750S Side Scan Sonar is an embedded single-beam system designed for integration with Unmanned Surface Vehicles (USV), Remotely Operated Vehicles (ROV), and Autonomous Underwater Vehicles (AUV/UUV). It is engineered for underwater engineering inspections, emergency search and rescue, and salvage operations. Key advantages include high-definition imaging, compact form factor, low power consumption, and integrated data storage. The professional HD Sonar software is user-friendly, featuring navigation display, track planning, target management, and waterfall display, with full support for secondary development via SDK.

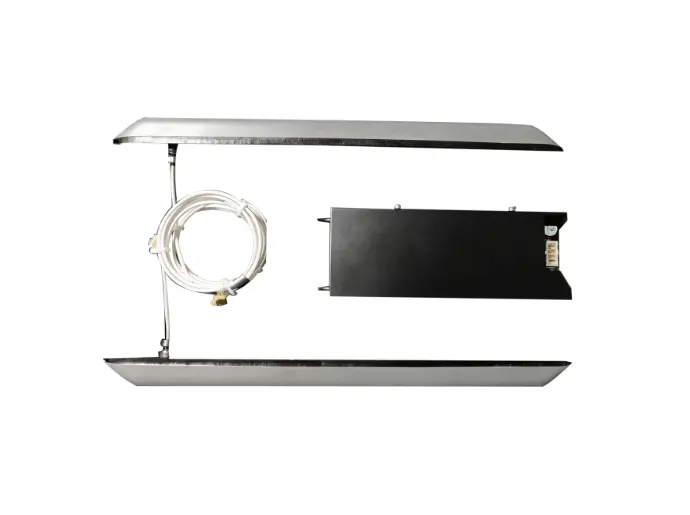

UAC-750S -single-beam side-scan sonar

UAC-750S

Key Features:

  • Imaging Precision: High-definition 750kHz imaging with 1.5cm resolution for crisp visualization.
  • Scan Coverage: Wide swath capability with a total detection range of up to 150m.
  • Imaging Principle: High-speed surveying performance with stability up to 5 knots.
  • Physical Characteristics: Compact, lightweight, and low-power (10W) with onboard data storage.
  • Technical Support: Seamless integration with USV, ROV, AUV, and unmanned platforms.
  • Independent IP: 100% self-developed software/hardware with SDK for secondary development.

▶ Request a quote

Overview

Specifications

Specification Parameter
Operating Frequency750 kHz (Center), 60 kHz (Bandwidth)
Beam Angle0.25° Horizontal , 36° Vertical
Max Detection Range75m (Per Side) / 150m (Total Swath)
Range Resolution1.5 cm
Max Operating Depth500m (Customizable)
Max Survey Speed5 knots
Communication100M/1000M Adaptive Ethernet
Power Consumption18-36 VDC, 10W (Typical)
Transducer Dimensions482mm × 40mm × 40mm (Single Side)
Electronics Module145mm × 85mm × 40mm
WeightTransducer: 500g (Side) / Electronics: 400g
Software & SDKHD Sonar software / SDK for secondary development

Applications


  • Pipeline Inspection: Detection of illicit outfalls and hidden underwater pipes.
  • Hydrographic Survey: Bathymetric imaging for ports, channels, and inland waterways.
  • Search & Rescue (SAR): Rapid localization for emergency recovery and salvage.

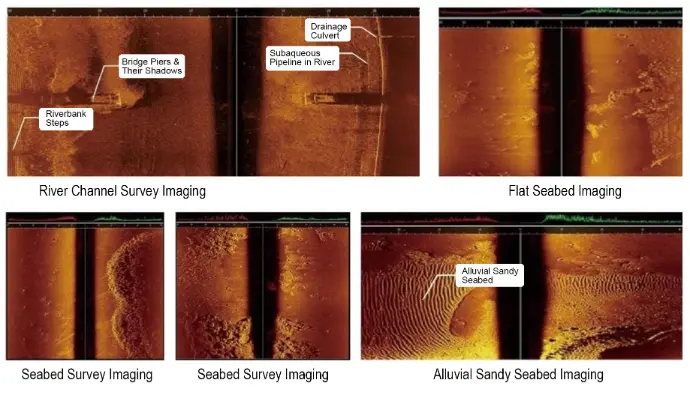

UAC-750S -single-beam side-scan sonar-Imaging​
