Multi-beam Forward-Looking Sonar 850kHz（Imaging Sonar）

The UAC-850F Forward-Looking Sonar utilizes advanced multi-beam imaging technology to provide real-time, high-resolution imaging of suspended targets or obstacles ahead of the sonar. Characterized by its compact form factor and high integration, the system features fully independent and controllable software and hardware. It is ideally suited for navigation safety and target detection on small and medium-sized underwater vehicles.

UAC-850F  Forward-Looking Sonar

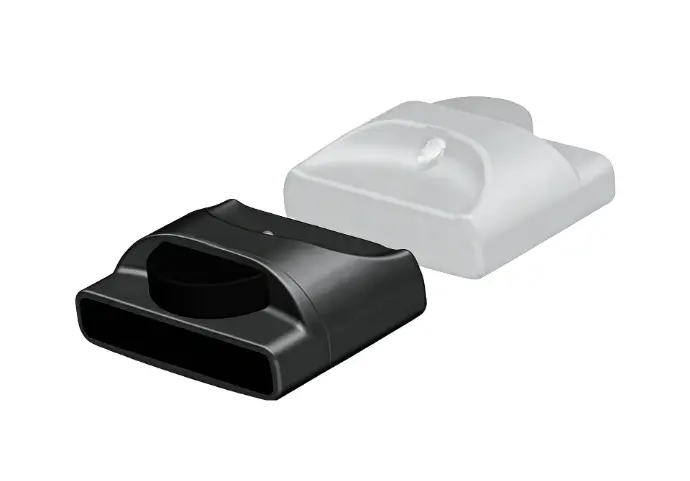

UAC-850F（Underwater Acoustic Camera ）

Key Features:

  • Imaging Precision: Multi-beam HD technology with 0.8° angular resolution for sharp target clarity.
  • Panoramic Vision: Wide 90° horizontal FOV for comprehensive real-time situational awareness.
  • Operational Reach: Reliable 80m detection range for proactive navigation and obstacle avoidance.
  • Ultra-Compact Design: Lightweight 1.1kg body with an available neutral buoyancy version.
  • Independent IP: 100% self-developed with SDK support for seamless secondary development.
  • Rugged Reliability: Durable 5A06 aluminum build, rated for 100m depth (customizable).

▶ Request a quote

Overview

Specifications

Specification Parameter
Operating Frequency850 kHz (Center), 50 kHz (Bandwidth)
Beam Field of View90° Horizontal × 18° Vertical
Max Detection Range≥ 80m (for -15dB targets in favorable conditions)
Range Resolution≤ 5 cm
Angular Resolution0.8°
Communication100M/1000M Adaptive Ethernet
External SyncRS485
Power Consumption18-30 VDC, 20W (Typical)
Operating Depth100m (Customizable on demand)
Dimensions135 mm × 110 mm × 60 mm
Weight1.1 kg (5A06 Al-alloy; Neutral buoyancy version available)
Software & DevelopmentIncludes Display Software & SDK for secondary development

Applications


  • Obstacle Avoidance: Real-time sensing to protect underwater drones from collisions with suspended objects.
  • Target Identification: HD multi-beam imaging for precision detection of small subsea targets.
  • ROV/AUV Navigation: Essential situational awareness for autonomous and remotely operated vehicles.
  • Underwater Search: Efficient scanning and location of obstacles or equipment in zero-visibility waters.
  • Infrastructure Survey: High-resolution monitoring of subsea structures for maintenance and safety.

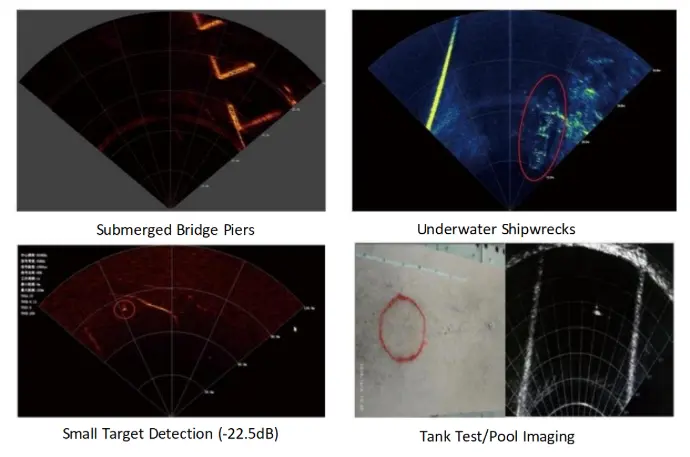

Imaging Gallery-UAC-850F-Forward-looking Sonar 850kHz
