China Sonar Company has launched a series of more cost-effective Acoustic Doppler Current Profiler (ADCP) products, such as the PandaADCP series. These products are made of titanium alloy, featuring high precision, high reliability, small size, small blind area, etc. They are easy to operate and have high cost performance, and can conduct comprehensive measurements.

They have wide applications in fields such as oceanography (including ocean observation, moorings at different depths, research vessels, AUVs and gliders, academic coastal oceanography), coastal areas (biological oceanography, engineering, environmental management, fisheries and navigation safety), and energy (deepwater oil and gas, renewable energy, cable and pipeline laying vessels and networks), providing important data support for related activities in various fields and promoting the development of related industries.

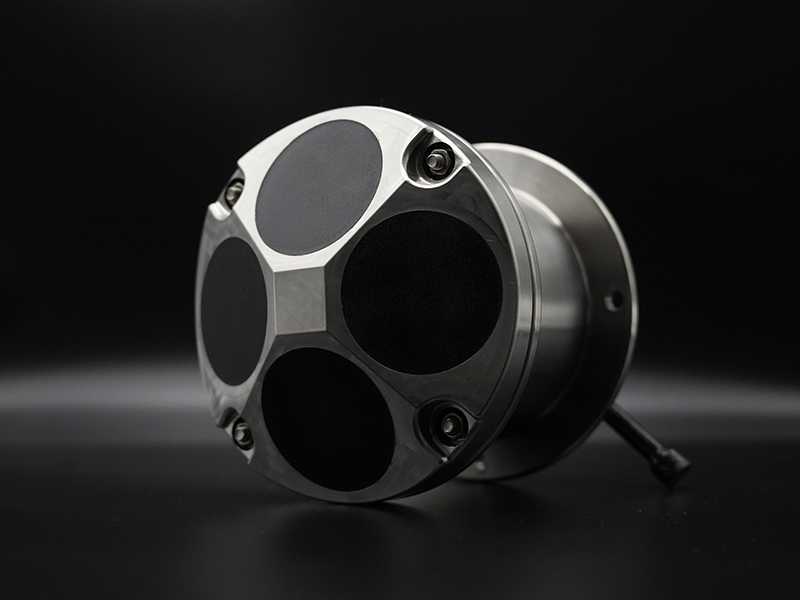

PandaADCP-DR-600K


$ 16800 .00

The price is as low as
  • Max Profiling Range: 55m/70m
  • Max Bottom Track Range: 110m
  • Velocity Accuracy: ±0.3%±3mm/s
  • Velocity Range: ±5.0 m/s  to ±20.0 m/s
  • Ping Rate: 2Hz(typical)
  • Depth Rating: 200m (optional 1000m, 3000m, 6000 m)
  • Standard Sensors​: Temperature, Pressure, Tilt, Compass
  • Communications: RS-232 or RS-422
  • Weight(In air/In water):light to 1.8 kg/1.1 kg

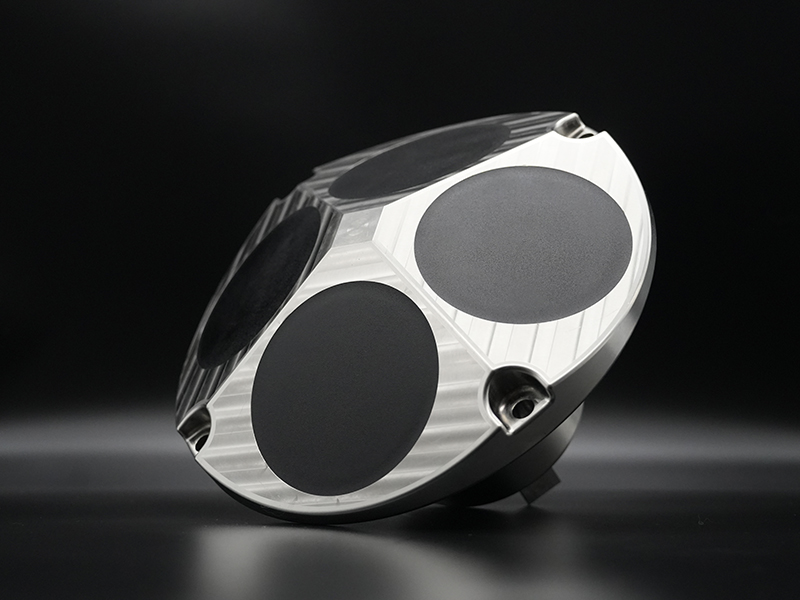

PandaADCP-DR-300K


$ 21800 .00

The price is as low as
  • Max Profiling Range: 120m/160m
  • Max Bottom Track Range: 220m
  • Velocity Accuracy: ±0.5%±5mm/s
  • Velocity Range: ±5.0 m/s  to ±20.0 m/s
  • Ping Rate: 2Hz(typical)
  • Depth Rating: 200m (optional 1000m, 3000m, 6000 m)
  • Standard Sensors​: Temperature, Pressure, Tilt, Compass
  • Communications: RS-232 or RS-422
  • Weight(In air/In water):light to 3.8 kg/2.9 kg

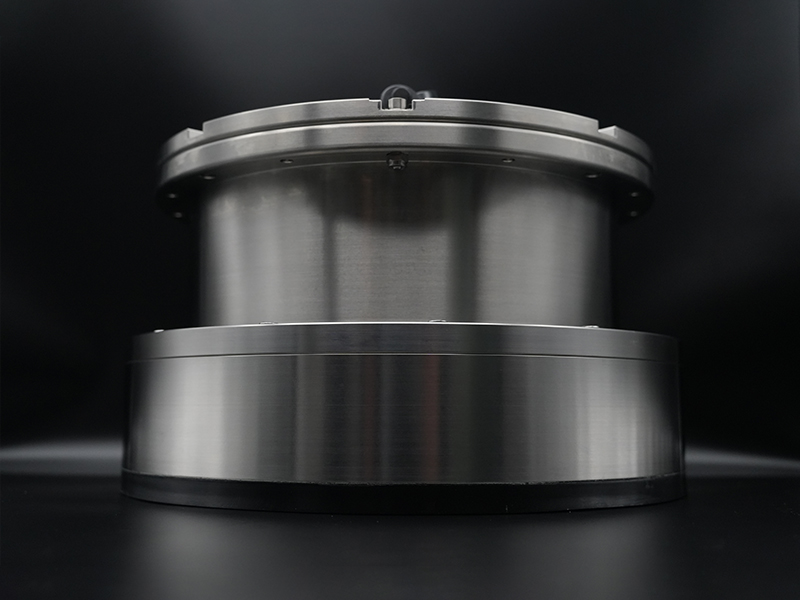

PandaADCP-DR-75K-PHASE


$ 59800 .00

The price is as low as
  • Max Profiling Range: 550m/650m
  • Max Bottom Track Range: 1000m
  • Velocity Accuracy: ±1.0%±5mm/s
  • Velocity Range: ±5.0 m/s  to ±20.0 m/s
  • Ping Rate: 2Hz(typical)
  • Depth Rating: 1000m (optional 3000m, 6000 m)
  • Standard Sensors​: Temperature, Pressure, Tilt, Compass
  • Communications: RS-232 or RS-422
  • Weight(In air/In water):light to 55 kg/37 kg

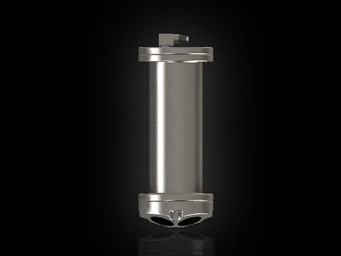

PandaADCP-SC-600K


$ 17800 .00

The price is as low as
  • Max Profiling Range: 55m/70m
  • Max Bottom Track Range: 110m
  • Velocity Accuracy: ±0.3%±3mm/s
  • Velocity Range: ±5.0 m/s  to ±20.0 m/s
  • Ping Rate: 2Hz(typical)
  • Depth Rating: 200m (optional 1000m, 3000m, 6000 m)
  • Standard Sensors​: Temperature, Pressure, Tilt, Compass
  • Communications: RS-232 or RS-422
  • Weight(In air/In water):light to 2.7 kg/1.1 kg

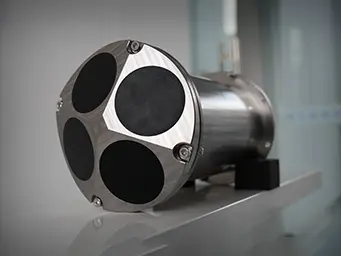

PandaADCP-SC-300K


$ 21800 .00

The price is as low as
  • Max Profiling Range: 120m/160m
  • Max Bottom Track Range: 220m
  • Velocity Accuracy: ±0.5%±5mm/s
  • Velocity Range: ±5.0 m/s  to ±20.0 m/s
  • Ping Rate: 2Hz(typical)
  • Depth Rating: 200m (optional 1000m, 3000m, 6000 m)
  • Standard Sensors​: Temperature, Pressure, Tilt, Compass
  • Communications: RS-232 or RS-422
  • Weight(In air/In water):light to 8.0 kg/4.0 kg

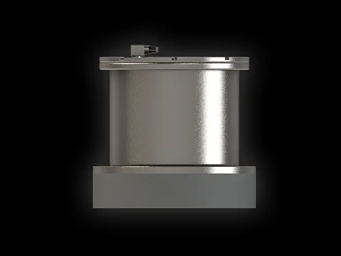

PandaADCP-SC-75K-PHASE


$ 61800 .00

The price is as low as
  • Max Profiling Range: 550m/650m
  • Max Bottom Track Range: 1000m
  • Velocity Accuracy: ±1.0%±5mm/s
  • Velocity Range: ±5.0 m/s  to ±20.0 m/s
  • Ping Rate: 2Hz(typical)
  • Depth Rating: 1000m (optional 3000m, 6000 m)
  • Standard Sensors​: Temperature, Pressure, Tilt, Compass
  • Communications: RS-232 or RS-422
  • Weight(In air/In water):light to 52 kg/34 kg
