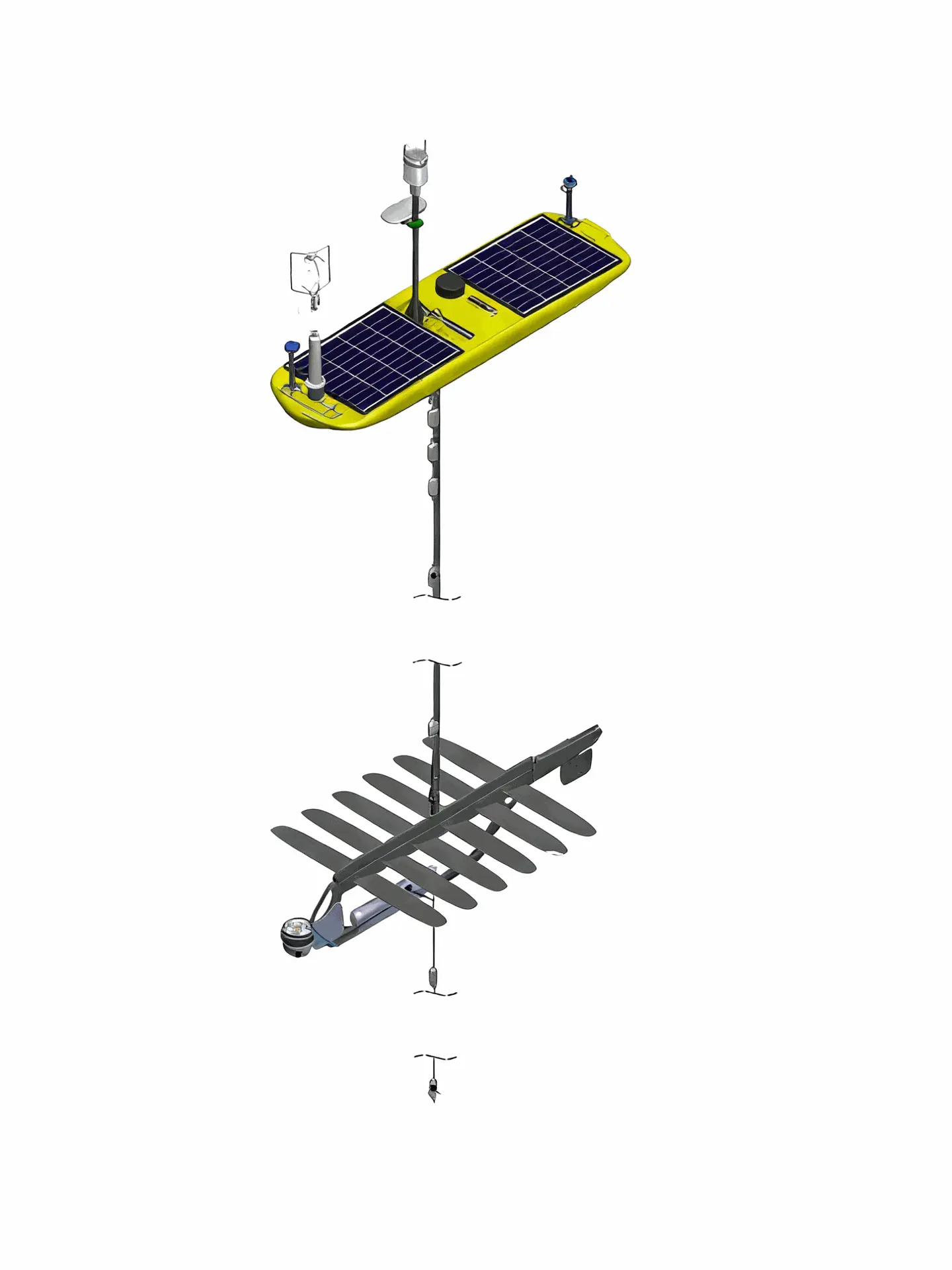

USV2 Wave Glider
Solar-Powered Uncrewed Surface Vehicle (USV)
To date, the company has completed the mass production and delivery of over 280 wave glider systems, providing ocean observation, monitoring, and sensing services to more than 100 scientists from over 20 marine research institutions.
These wave gliders have successfully endured 17 typhoon events in the Northwest Pacific Ocean and the South China Sea, accumulating a total effective operational distance exceeding 200,000 km. Their survivability under extreme sea-state conditions has been fully validated.
The successful development of the USV2 platform represents a revolutionary technological upgrade to the wave glider system, significantly enhancing overall platform performance, payload capability, and mission functionality.
Overview
Wave Glider USV2
Key Features:
- Hybrid Propulsion – Wave energy and auxiliary thruster enable energy-efficient, long-endurance missions.
- High Payload Capacity – Supports acoustic, optical, electrical, and magnetic sensors for versatile ocean monitoring.
- All-Weather, Long-Duration Operation – Solar and battery power ensure reliable performance in Sea State 1–4.
- Cross-Medium Real-Time Communication – Provides surface-to-underwater data relay and secure telemetry.
- Autonomous Navigation & Station-Keeping – Precise path following, virtual anchoring, and networked formation operation.
Standard Configuration
Scientific Payloads
The Wave Glider can be equipped with a wide range of scientific payloads, including meteorological stations, laser Doppler wind lidar, atmospheric duct sensors, wave sensors, CTD (Conductivity–Temperature–Depth) sensors, temperature and salinity winches, ADCP (Acoustic Doppler Current Profilers), multi-parameter water quality sensors, hydrophones, magnetometers, vision-based recognition systems, and AIS receivers.
These payloads enable missions such as marine meteorological observation, tsunami and earthquake monitoring, marine mammal and biological monitoring, and offshore energy exploration. In addition, the Wave Glider can carry underwater acoustic communication modems to perform surface-to-underwater data relay and communication gateway missions.
Unique Capabilities
The Wave Glider features self-sustaining energy supply, global positioning, satellite communications, and autonomous navigation. It is capable of autonomous navigation along predefined routes or virtual anchoring around designated locations, enabling long-duration, wide-area unmanned continuous survey operations (up to 10,000 km per year).
In addition, the platform supports virtual station-keeping at fixed sea-surface locations, providing data relay and communication gateway services for underwater and surface-based systems, as well as long-range real-time data transmission to shore-based control centers.

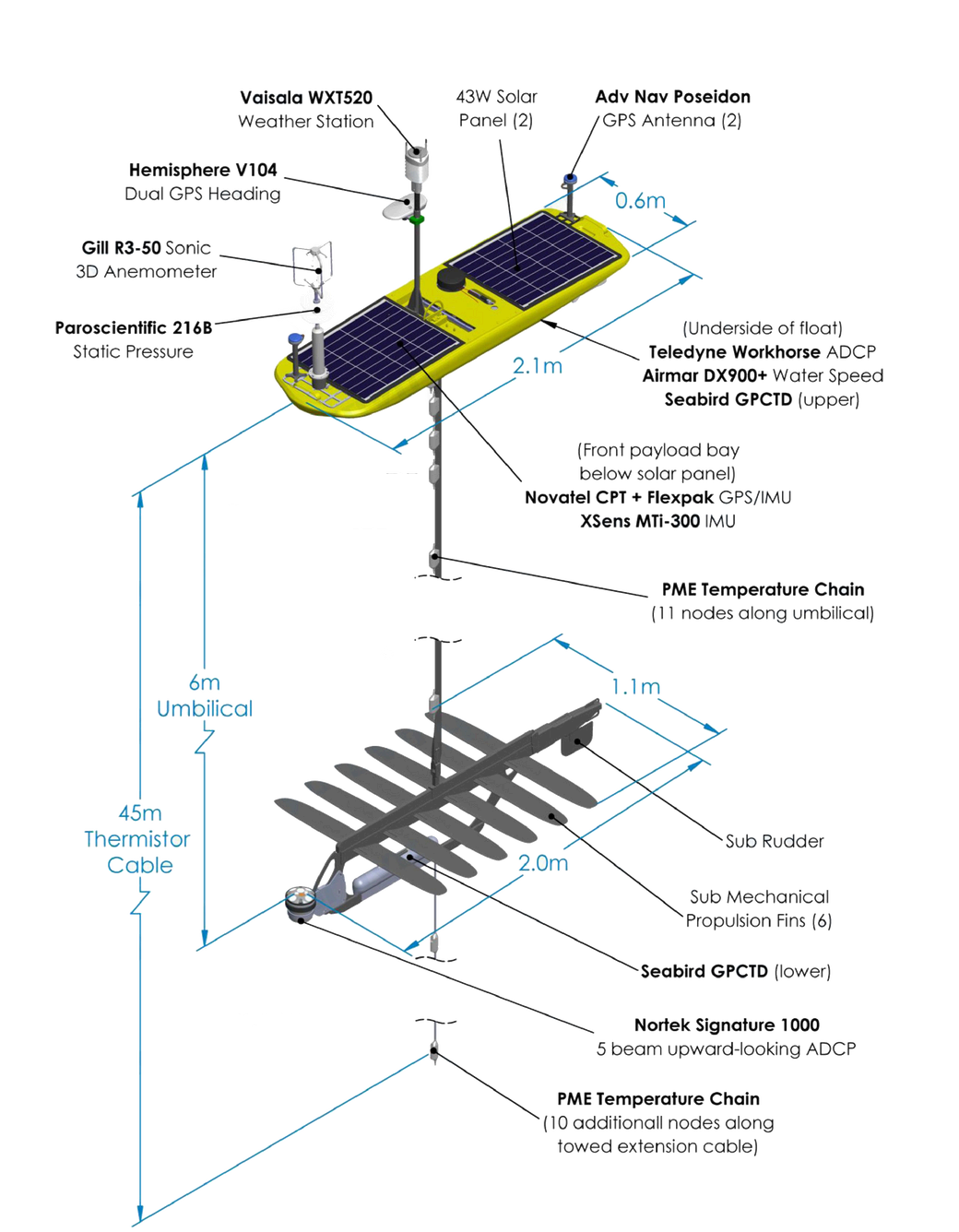

Product Schematic
Applications
- Marine Meteorological Observation
Continuous measurement of wind speed, wind direction, air temperature, atmospheric pressure, and humidity, supporting offshore weather monitoring, forecasting, and climate research.
- Sea Surface and Upper-Ocean Hydrological Observation
Real-time observation of wave height, wave direction, current speed, current direction, sea surface temperature, and salinity, enabling long-term monitoring of ocean surface dynamics and air–sea interactions.
- Coastal Security and Maritime Patrol
Persistent coastal and nearshore surveillance using video, optical imagery, and radar data, supporting maritime domain awareness and coastal security operations.
- Underwater Acoustic Measurement
Measurement of ambient underwater noise and direction finding and localization of underwater targets, supporting ocean acoustic research and maritime safety applications.
- Ocean Dynamics and Profiling Observation
Acquisition of vertical profiles of current velocity and direction, as well as water temperature and salinity profiles, enabling studies of ocean circulation and water column structure.
- Marine Water Quality and Ecosystem Monitoring
Long-term monitoring of pH, dissolved oxygen, turbidity, chlorophyll, partial pressure of carbon dioxide (pCO₂), radioactivity, and other key indicators, supporting marine environmental protection and ecosystem assessment.
