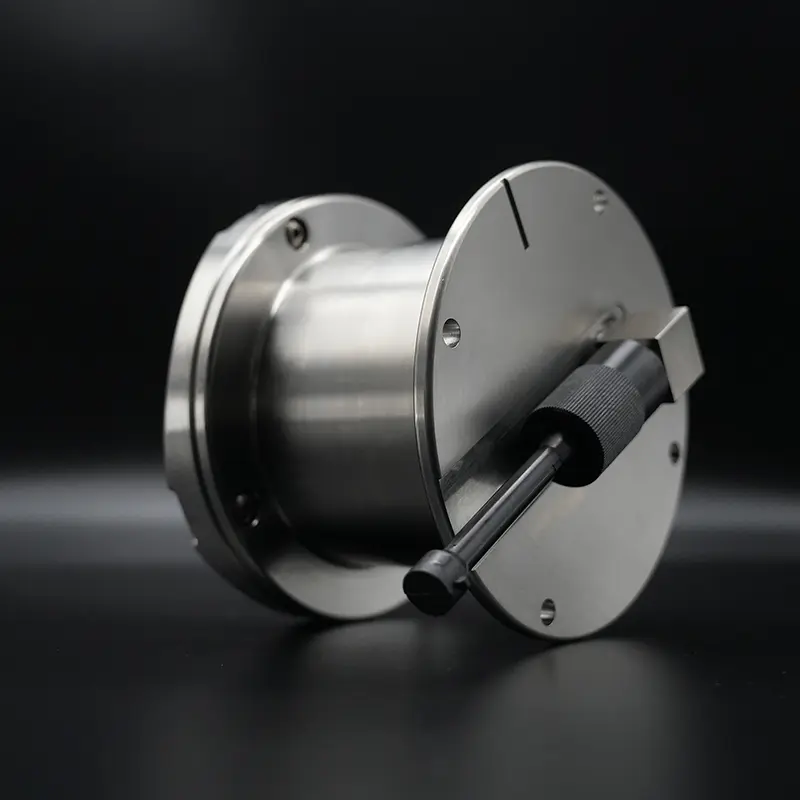

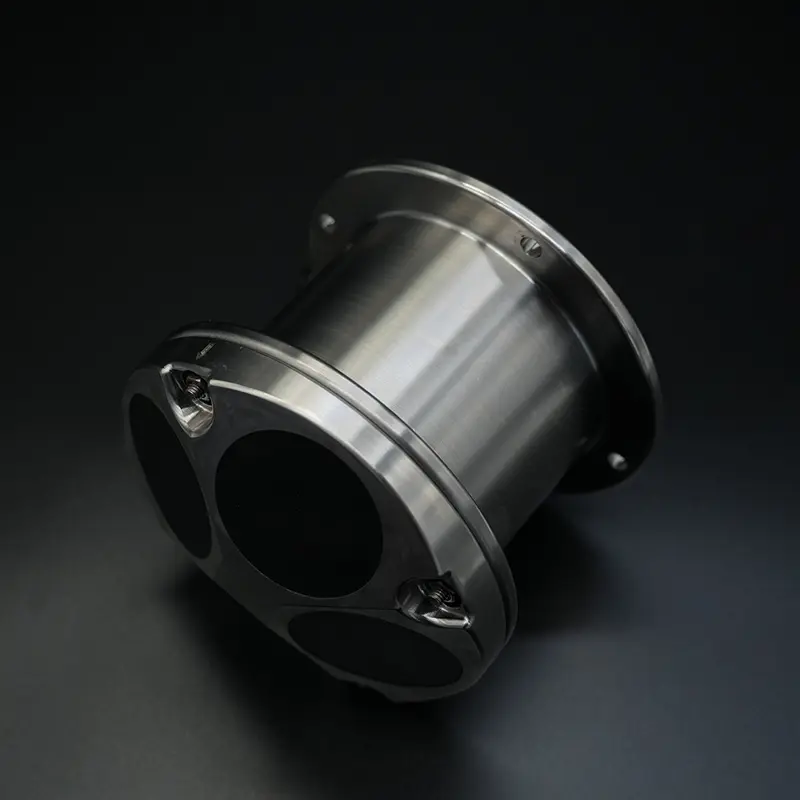

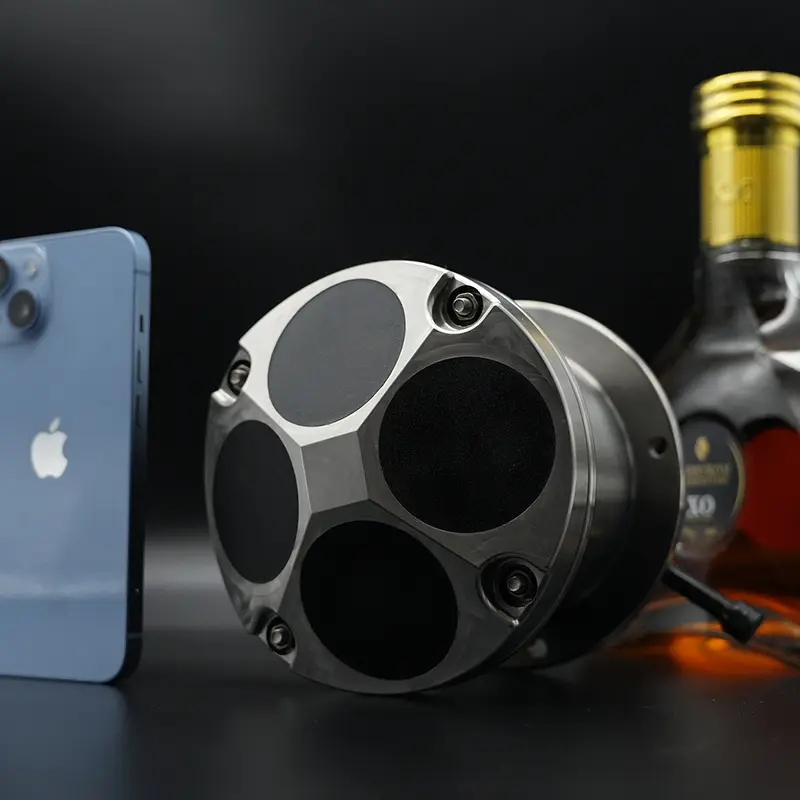

DVL-600K
The DVL-600K series acoustic Doppler velocity log (DVL) accurately measures the movement velocity of the device relative to the seabed. When integrated with a compass or inertial navigation system, it can form an autonomous navigation system, which is widely used in surface vessels, underwater towing vehicles, AUVs, ROVs, etc., to achieve precise control and navigation.
Smaller,lighter and more reliable.
| Working Frequence: 600kHz |
| Maximum Bottom Tracking Depth: 110m |
| Bottom Tracking Accuracy: ±0.3% ±3 mm/s |
| Bottom Tracking Velocity Range: ±10 m/s |
| Ping Rate: 2Hz(typical) |

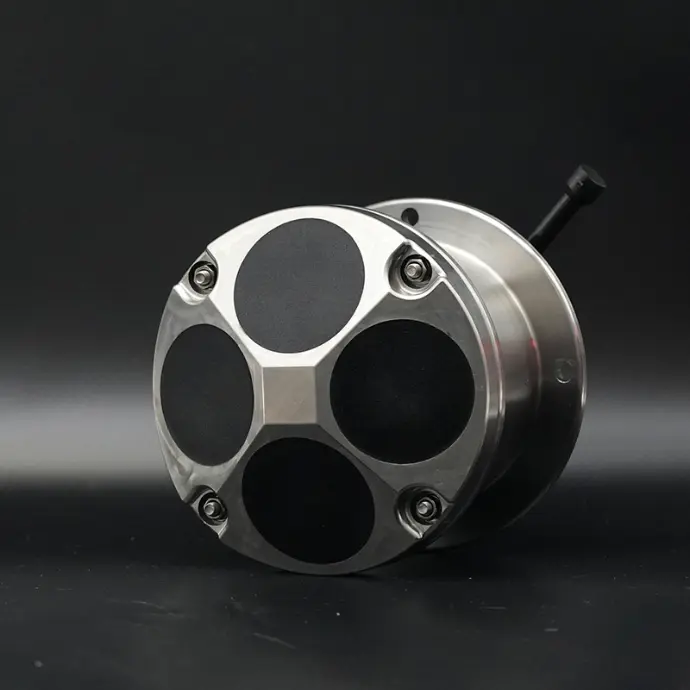

| Beam Configuration: 4-beams,convex |
| Beam Angle: 20° |
| Beam Width: 3.5° |
| Communications: RS-232 or RS-422 |
| Power Input: 20V~50V, 5A |
| Max transmit power: ≤100W |
| Sensor（Water Temperature ）: Range: -5° - 45°C, Accuracy: ±0.1°C |
| Sensor (Pressure): Range: acording to depth rate, Accuracy: ±0.25% Range |
| Sensor (Tilt）: Range: Roll ±180° | Pitch ±90°, Accuracy: < 0.1° RMS, Resolution: 0.01° |
| Sensor (Compass ): Range: 0°-360°, Accuracy: 2° RMS, Resolution: 0.01° |
| Operating Temperature: -5° to 45° C |
| Storage Temperature (without batteries): -30° to 60° C |
| Current measurement function: yes |
DVL-600k series
Quietly brilliant,
Better Price
Our mission is to create a shared plan
for saving the planet’s most exceptional wild places.

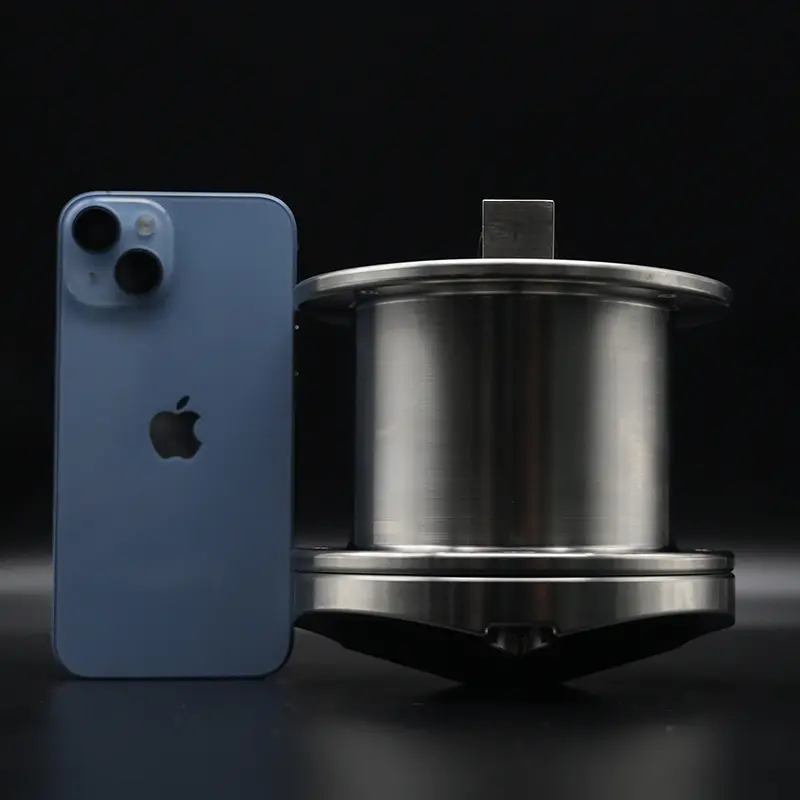

Light to 2.4 kg
Original Manufactor.
Faster response and shorter delivery cycle.
12-month Warranty
The longest warranty period in the entire industry.
7x24 hours Service
Solve after-sales problems through EMAIL, phone, video and other methods.
Application Scenarios
Where are DVL Used?

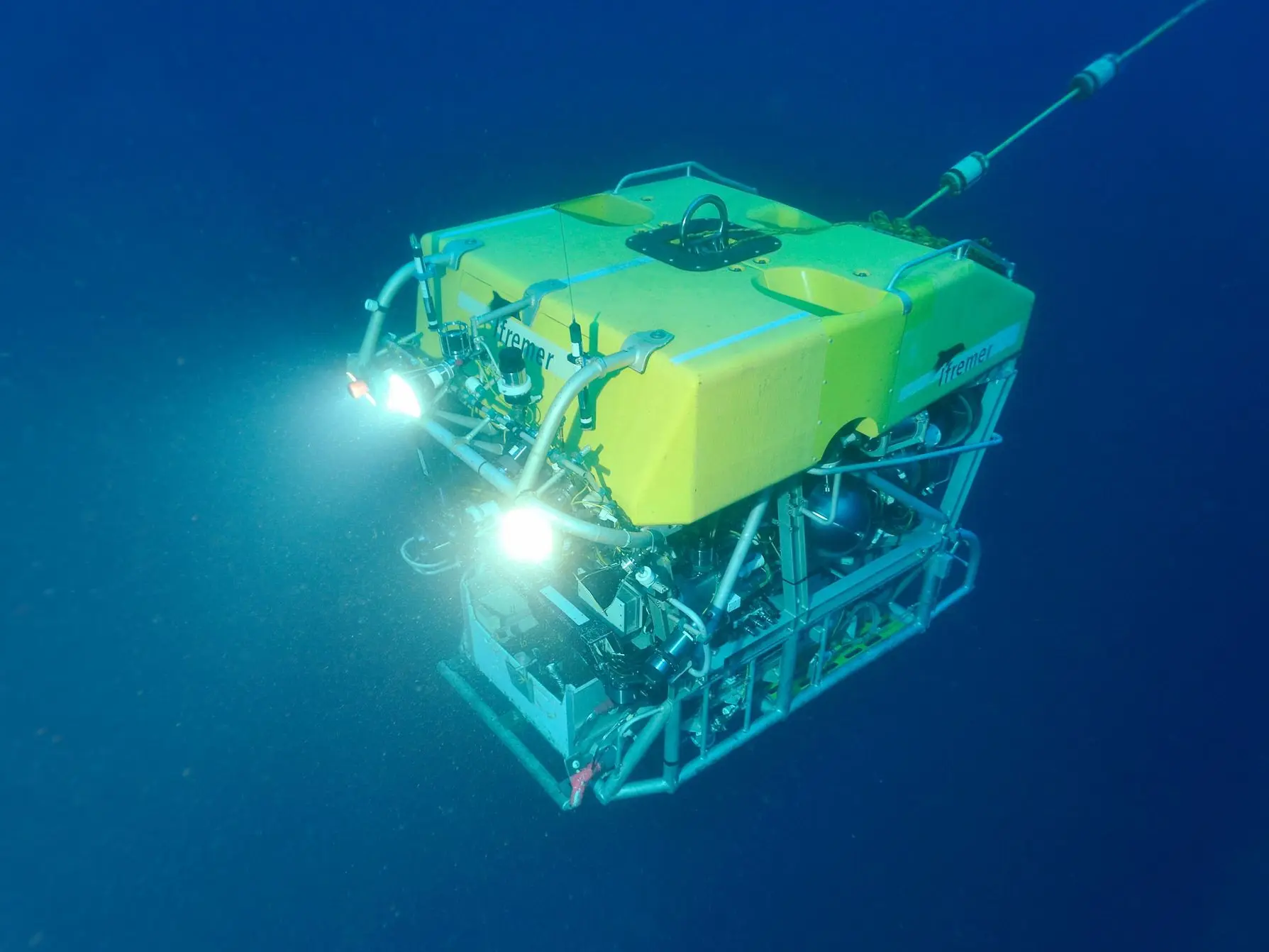

ROV
AUV
Which choose us?
Made in China is not only known for its low prices. There is much more.
Standardized
Transducer
Automated Electronic PCBA
Automated Precise
Machining
Ample
Labo![]()
ratory Verification
Sufficient
Maritime Tests
High-quality Software Development
